Crown Magnetic Drill 1800W CT32030 BMC
Long-lasting drilling and impact drill
Allows selection of optimum speed for specific materials.
Allows changing the direction of rotation.
Package Included
Strength600W
Chuck TypeAutomatic Supra Chuck
No Load Speed0-2800 RPM
Drilling Capacity(Concrete)13mm
Drilling Capacity(Metal)13mm
Drilling Capacity(Wood)20mm
Weight1.70 kg
Number of Boxes5 Names
Chuck13mm

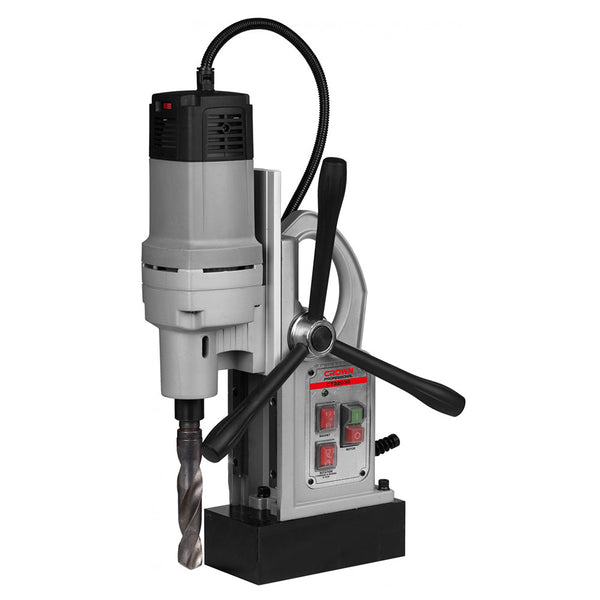

Crown CT32030 BMC Magnetic Drilling Machine is designed for professional use. Such an installation is used for drilling metal beams and ceilings. It is worth emphasizing the versatility of the machine. It has a magnetic base that allows you to mount it on metal structures. The presented model shows itself perfectly in practice due to its high performance.
Key Features:
Rated power 1800 W
The Crown CT32030 BMC magnetic drilling machine is equipped with a powerful motor. It provides such equipment with high performance and load resistance. It has overload and overheat protection for reliable operation.
Speed control
The model provides smooth adjustment of engine speed. It provides precise work. You can set the optimal speed for drilling a certain type of metal. Also set up the machine to use a specific drill diameter. Thus optimizing the load on it, as well as on the machine itself.
High drilling efficiency
Due to the fact that the Crown drilling machine with a magnetic base is equipped with a powerful motor and gearbox, it perfectly copes with any task. The model easily drills holes up to 32 mm with a twist drill. The maximum stroke of 190 mm provides a large drilling depth.
Magnetic base
Please note that the machine is equipped with a powerful magnetic base. It will allow you to place the device on a metal beam or other structure. The high strength of the magnet ensures the highest possible reliability of fixation.
High precision aluminum guide
Thanks to the reliable operation of the guide, you will be able to perform precise drilling. The absence of backlash ensures the absence of vibration and smooth running. The maximum stroke of 180 mm allows for greater drilling depth.
Rotor with dust shroud
Dust protection ensures reliable operation of the mechanism, as well as the absence of excessive wear.
Features:
Allows selection of optimum speed for specific materials.
Allows changing the direction of rotation.
Productive and reliable machine for professional use.
The model uses a magnetic base for mounting on metal beams.
High drilling efficiency due to precise speed control.
The strengthened reducer with protection against dust.
High precision guide system.
Convenient management.
Specifications:
Brand: Crown
Model: CT32030 BMC
Type: Magnetic Drill
Voltage: 220 V
Power (W): 1800
Drill chuck type key Spindle speed: 600 rpm
Max diameter of the resulting hole: 32 mm
Max drilling depth: 190 mm
Speed: 600 rpm
Downforce: 18000 N
Spindle cone: MK3/MT3
Coolant supply system: No
Max diameter of core drill: 60 mm
Processing material: metal
Max twist drill diameter: 32 mm
Illumination of the working area: No
Type of equipment: twist/core drill
Net weight: 23.6 kg
Length: 58.5 cm
Width: 18.5 cm
Height: 41.5 cm
لمواصفات الفنية
الطاقة المقدرة : 1800 واط
التيار الكهربائي عند الجهد : 220-230 فولت 7.5 أمبير
سرعة عدم التحميل : 200-600 دقيقة
مقاس المخرطة : 32 مم
ريشة مثقاب : 32 مم
السكتة الدماغية : 190 مم
مثقاب مجوف : 60 مم
قوة احتجاز المغناطيس : 18000 نيوتن
حامل أداة : MT3
الوزن : 23.6 كجم
